OTJ-1056 multi-core power cord with inner and outer skin peeling for computer machine
Publish：2024-09-20 View：242

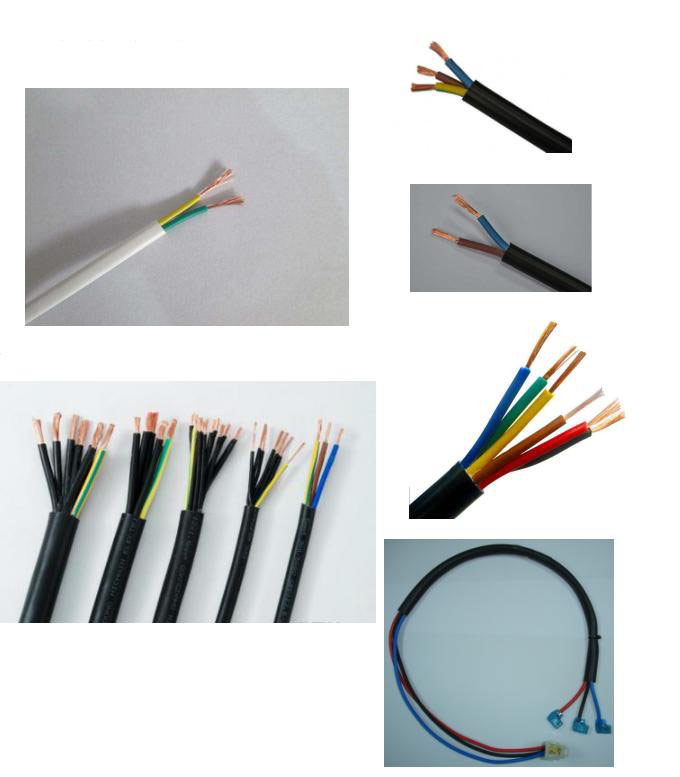

Through the joint efforts of all R&D personnel at Xiamen Outejia Automation Equipment Co., Ltd., a multi-core power cord inner and outer skin peeling computer machine called OTJ-1056 has finally been launched. This machine is mainly designed for processing two core and three core power cords with twisted distance inside and outside together. Because the two or three cores inside these wires are not concentric with the outer skin, especially the two or three cores with twisted distance, multiple wires are wound together. Ordinary computer wire peeling machines can only cut or process the outer insulation skin, while pneumatic wire peeling machines can only be used for secondary processing inside, which is time-consuming and laborious. This machine can peel off all the insulation skin inside and outside the above-mentioned wires at once. It is an ideal solution for various power cord plug factories.
1、 Machine parameters:
Model: OTJ-1056 Display mode: Touch screen
Applicable cables: 2-core, 3-core power cables Display interface: 7-inch touch screen, Chinese LCD
Cutting capacity: 50mm~9999mm Air pressure: 0.4~0.6Mpa
Processing diameter: 3.0-8.0mm Stripping speed: 400-700pcs/h
Cutting depth unit: 0.01mm Blade: 4 pieces Material: Imported high-speed steel
Outer layer stripping capacity: left end 100mm, right end 150mm
Short stripping length of outer skin: Dimensions: 660 * 700 * 400
Weight: 102kg
Power: 600W
1、 Machine parameters:
Model: OTJ-1056 Display mode: Touch screen
Applicable cables: 2-core, 3-core power cables Display interface: 7-inch touch screen, Chinese LCD
Cutting capacity: 50mm~9999mm Air pressure: 0.4~0.6Mpa
Processing diameter: 3.0-8.0mm Stripping speed: 400-700pcs/h
Cutting depth unit: 0.01mm Blade: 4 pieces Material: Imported high-speed steel
Outer layer stripping capacity: left end 100mm, right end 150mm
Short stripping length of outer skin: Dimensions: 660 * 700 * 400
Weight: 102kg
Power: 600W
Power supply: AC220V/110V 50/60Hz
